Facility Site ID: 71755531
Cleanup Site ID: 12131

Groundwater Status Update

This Site is in the Voluntary Cleanup Program (VCP).

Ecology received the Remedial Injection and Groundwater Monitoring Work Plan on June 13, 2022.  Ecology issued an Opinion Letter on October 5, 2022

Groundwater conditions is currently being monitored. Additional injections to treat contaminated groundwater might be necessary.

Site Location

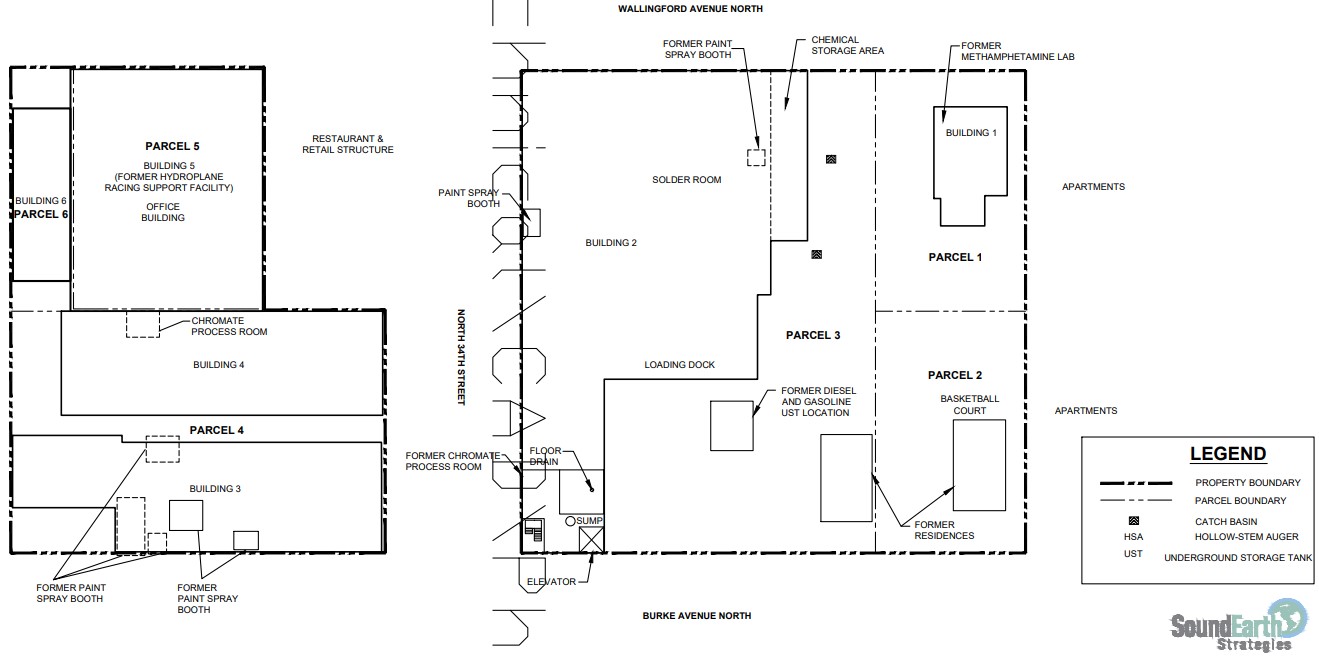

A map of the Site
A map of the Site
The Site is located on the north and south sides of N 34th Street. The Site consists of six tax parcels (the Property), N 34th Street, Burke Avenue N, and an adjacent property located at 1801 N 34th Street. The Site boundary is not currently completely defined. Ongoing investigations will aid in defining the current site boundary.

Site Background

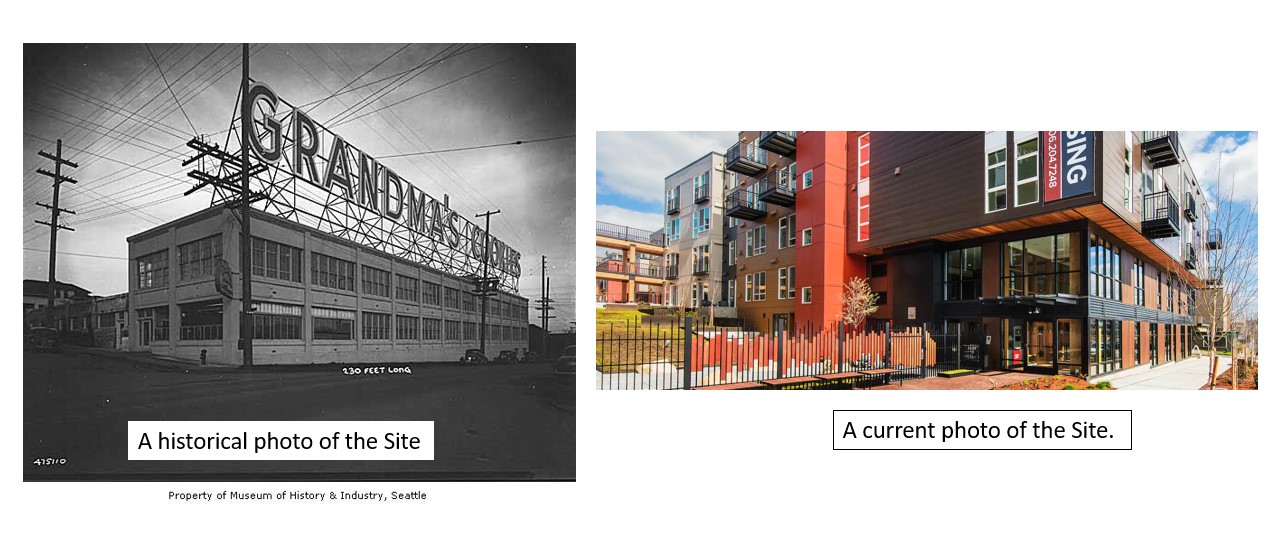

A picture of the Site before and after
A picture of the Site before and after
The Property was first developed with four single-family residences in the early 1900’s. A two-story concrete factory building was constructed on the north side of N 34th Street in 1909. From this time until the 1940’s, the factory building was occupied by a shoe manufacturer. From the 1950s to the 1960s, the factory building was in use as a commercial bakery. From 1974 to 2011, an aviation electronics manufacturer occupied the property. The property was vacant from 2011 until  2014, when the existing buildings were demolished. In 2016, the Property was redeveloped into four-story apartment buildings on both sides of N 34th Street.

The contamination at the Site is likely associated with historic surface spills or airfall from the former coal gasification plant located at Gas Works Park.

2014 Redevelopment Remediation

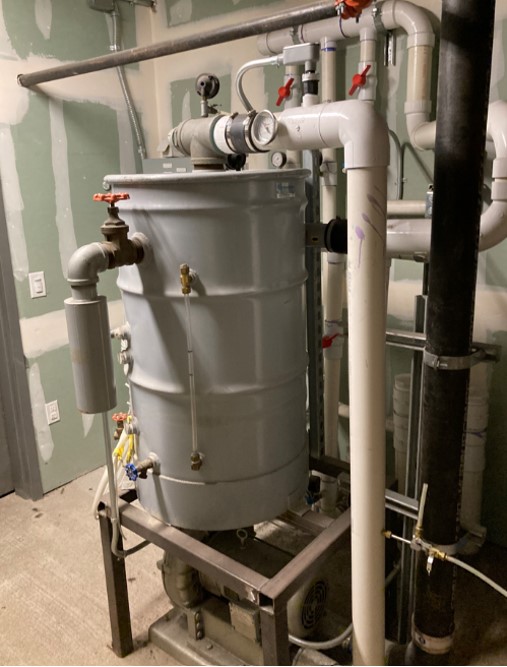

SVE system
SVE system
Contaminated soils underneath the former building (approximately 20 feet below ground surface) were removed.  Confirmation soil samples were collected from the sidewalls and bottom of the excavation. Most of the contaminated soil has been removed from the Site.

Soil vapor extraction (SVE) wells were installed below the parking structure and connected to high-powered fan. The purpose of the SVE system is to remove any volatile organic compounds that accumulated below the building.

2015 – 2021 Groundwater Remediation

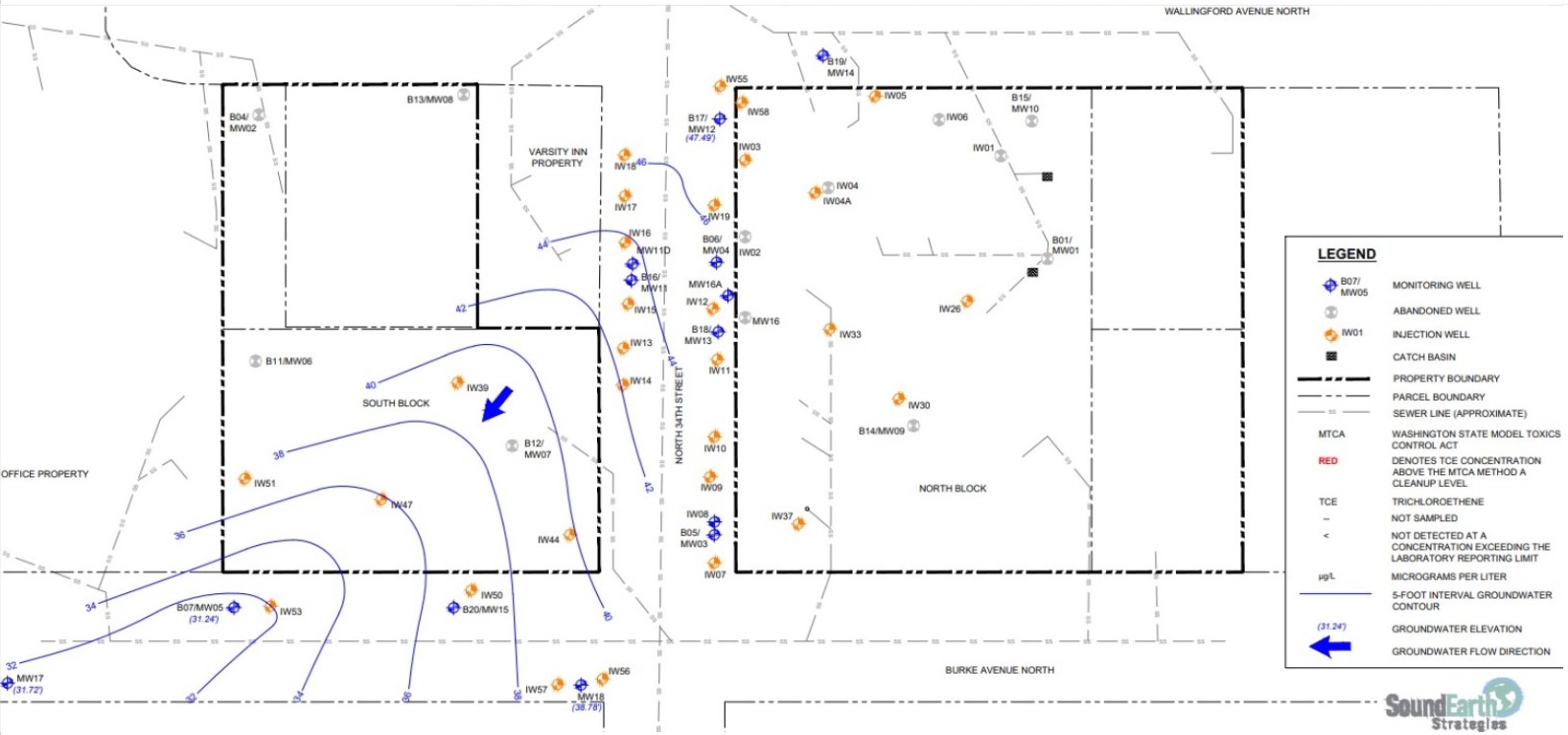

Groundwater Contour Map
Groundwater Contour Map
A potassium permanganate solution is injected into five wells between March 2015 – May 2021.  This solution provides nutrients to naturally-occurring microbes to aid in digestion of TCE in groundwater.

Groundwater monitoring is ongoing. The monitoring assesses the effectiveness of the injection on concentrations of TCE in groundwater on the Site.

Contaminants Of Concern

The use and storage of tetrachloroethylene (PCE) and trichloroethene (TCE) in aviation electronics manufacturing operations resulted in releases to soil and groundwater.

Additional contaminations were found in limited areas in soil:

  • Carcinogenic polycyclic aromatic hydrocarbons (cPAH) - in limited areas on the property.
  • Diesel-range total petroleum hydrocarbons (TPH-D)
  • Gasoline - (TPH-G)
  • Benzene, toluene, ethylbenzene, and xylenes (collectively BTEX)
  • Lead

Model Toxics Control Act

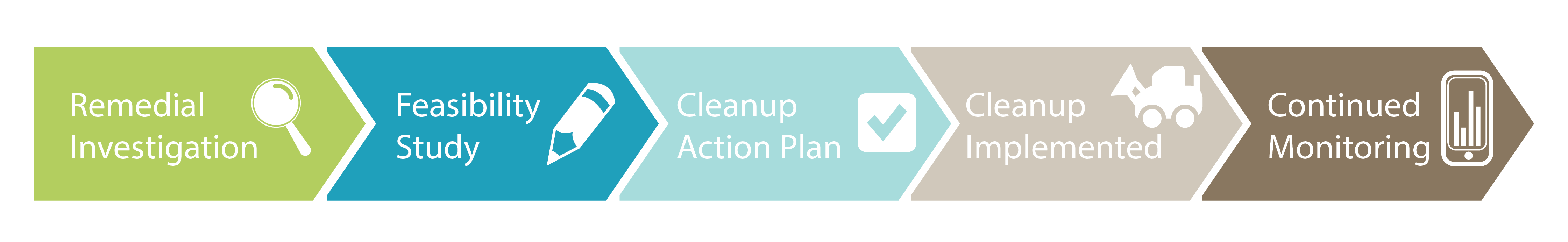

Model Toxics Control Act Cleanup Process
Model Toxics Control Act Cleanup Process
The Model Toxics Control Act (MTCA) is Washington’s environmental cleanup law. It provides requirements for contaminated site cleanup and sets standards that protect human health and the environment. Ecology enacts the MTCA and oversees cleanups.

​The MTCA site cleanup process is completed in steps over a variable timeline.

Report An Environmental Issue

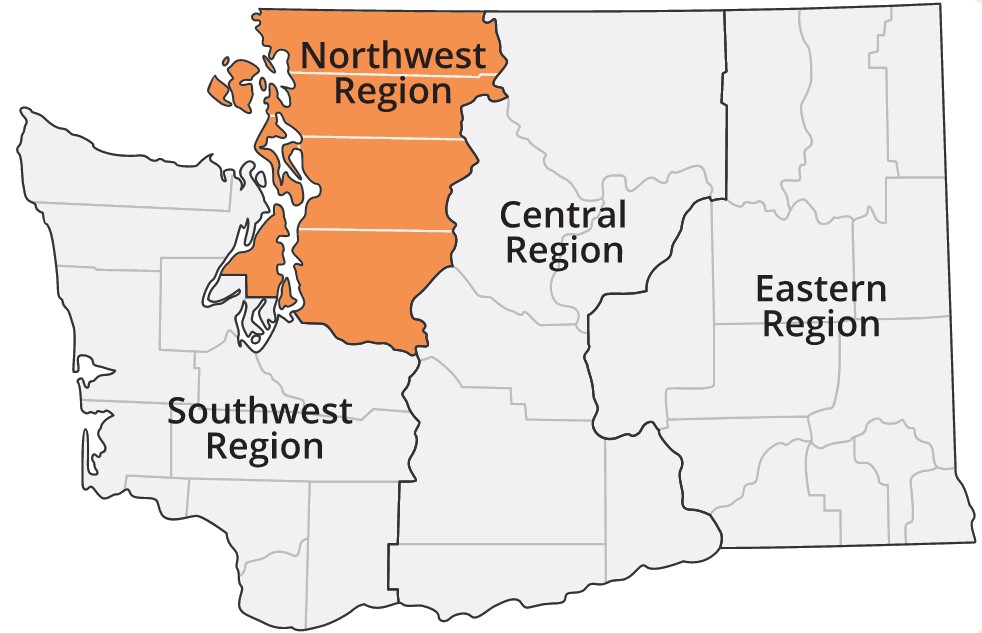

Northwest Region Office
Northwest Region Office

To report an environmental problem or concern, any time, day or night, use the online reporting form.

Counties: Island, King, Kitsap, San Juan, Skagit, Snohomish, and Whatcom
Email:
 nwroerts@ecy.wa.gov
Phone: 206-594-0000

Requesting Accommodation

Ecology is committed to providing people with disabilities access to information and services. To request an ADA accommodation, contact Ecology by phone at 360-407-6831 or email at ecyadacoordinator@ecy.wa.gov. For Washington Relay Service or TTY call 711 or 877-833-6341.  Visit Ecology’s website for more information.

​If you speak a non-English language, free language services are available.

Voluntary Cleanup Program

This site is in our Voluntary Cleanup Program, which provides technical help to owners of contaminated sites.

Voluntary Cleanup Program customers pay fees to cover our costs for technical help and reviewing cleanup reports. Sites in this program must meet the same cleanup standards as sites Ecology manages under legal orders.

Technical Reports 17
Document Title Document Date Document Type
Avtech Corp - Supplemental Subsurface Investigation Work Plan 3/5/2025 Site Specific Technical Document - Other
Avtech Corp - NW2739 - Updated Injection Work Plan 6/20/2023 Site Specific Technical Document - Other
Avtech Corp. - NW2739 - Response to Comments and Work Plan for GW Monitoring and VI Evaluation 11/15/2022 Site Specific Technical Document - Other
Avtech Corp—NW2739 Remedial Injection and Groundwater Monitoring Work Plan 6/13/2022 Site Specific Technical Document - Other
Third Quarter 2017 Groundwater Monitoring Report 10/18/2017 Monitoring Report
Second Quarter 2017 Groundwater Monitoring Report 8/23/2017 Monitoring Report
Cleanup Action Report 6/19/2017 Cleanup Action Plan
First Quarter 2017 GW Monitoring Report 5/16/2017 Monitoring Report
RI/FS & CAP Addendum 8/6/2014 Remedial Investigation / Feasibility Study Report
RI/FS/CAP 8/6/2014 Remedial Investigation / Feasibility Study Report
Draft CAP Avtech 3/14/2014 Cleanup Action Plan
Draft RI/FS Avtech VCP NW2739 1/21/2014 Remedial Investigation / Feasibility Study Report
Fourth Quarter 2013 Groundwater Monitoring Report 1/8/2014 Monitoring Report
In-Situ GW Pilot Test 8/20/2013 Site Specific Technical Document - Other
Supplemental Subsurface Soil Assessment Loading Dock Area 8/14/2013 Site Specific Technical Document - Other
Third Quarter 2013 Groundwater Monitoring Report 8/13/2013 Monitoring Report
Phase 2 Environmental Site Assessment 5/22/2012 Site Specific Technical Document - Other
Voluntary Cleanup Program 7
Document Title Document Date Document Type
Avtech Corp - VCP Opinion on Supplemental Subsurface Investigation Work Plan 4/7/2025 VCP Opinion on Site Cleanup – Other
Avtech Corp - VCP Technical Assistance - Compliance Monitoring 4/24/2024 VCP Technical Assistance
Avtech Corp - NW2739 - Technical Assistance on Injection WP 7/3/2023 VCP Technical Assistance
Avtech Corp - NW2739 - VCP Opinion Letter on Proposed Work Plan 1/19/2023 VCP Opinion on Site Cleanup – Other
Avtech Corp—NW2739 VCP Opinion Letter 10/4/2022 VCP Opinion on Site Cleanup – Other
Avtech Corp - NW2739 VCP Status Request Letter 9/23/2021 VCP Administrative Document
Avtech Corp NW2739 - VCP Opinion Letter - NFA Likely 10/22/2014 Voluntary Cleanup Program Opinion – Other
There may be more documents related to this site. To obtain documents not available electronically, you will need to make a public records request.

Places to see print documents

  • Northwest Regional Office
    15700 Dayton Ave N
    Shoreline, 98133
    Please schedule an appointment to view print documents at this location.

Contaminants 7

Contaminant Type
Soil
Groundwater
Surface Water
Air
Sediment
Bedrock
Non-Halogenated Organics - Non-Halogenated Solvents C C
Non-Halogenated Organics - Polycyclic Aromatic Hydrocarbons C
Halogenated Organics - Halogenated Solvents C
Metals - Lead C
Non-Halogenated Organics - Benzene C
Non-Halogenated Organics - Petroleum-Diesel C
Non-Halogenated Organics - Petroleum-Gasoline C
S
Suspected
C
Confirmed Above Cleanup Levels
B
Below Cleanup Levels
RA
Remediated-Above
RB
Remediated-Below
R
Remediated
This contaminant list was based on our best information at the time it was entered. It may not reflect current conditions at the site.
