Facility Site ID: 75292 Cleanup Site ID: 15281

Status

This Site was cleaned up under the Voluntary Cleanup Program (VCP).

The site was issued a Site No Further Action Letter on September 28, 2023.
The No Further Action determination depends on the post-cleanup controls and monitoring specified in the letter and in an environmental covenant.

Site Background

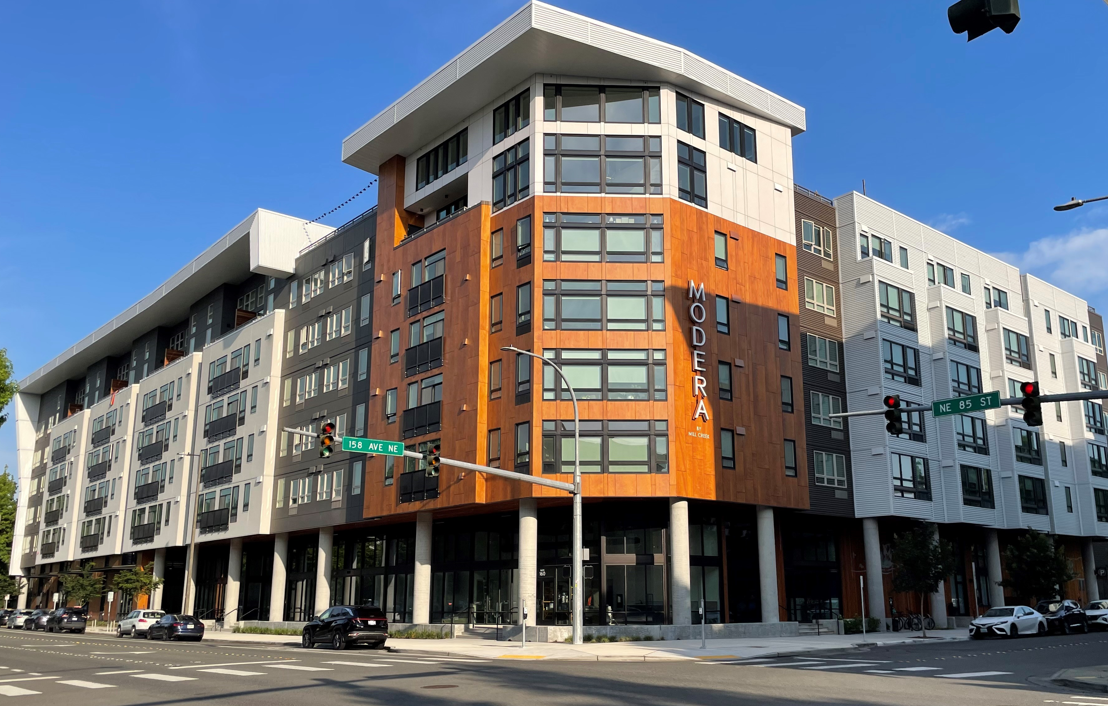

The Site is located on the southeast corner of the intersection of NE 85th Street and 158th Avenue NE in downtown Redmond. The Site is developed with a six-story mixed-used building in 2020. Prior to the construction of the current building, the Site was occupied by two office buildings, located on the northwest and southeast potion of the Site, respectively.

During building demolition in 2019, a total of approximately 50 timber piles were discovered beneath the former office building on the northwest portion of the Site. These timber piles are approximately 15 feet in length and 8 inches in diameter. The timber piles were preserved with creosote, which consists of polycyclic aromatic hydrocarbons (PAHs). Soil near the timber piles is contaminated with PAHs.

Cleanup Conducted

Since 2019, environmental investigations were conducted to define the lateral and vertical extent of the soil contamination. Soil contamination is confined within the upper 6 feet beneath the northwest portion of the current building.

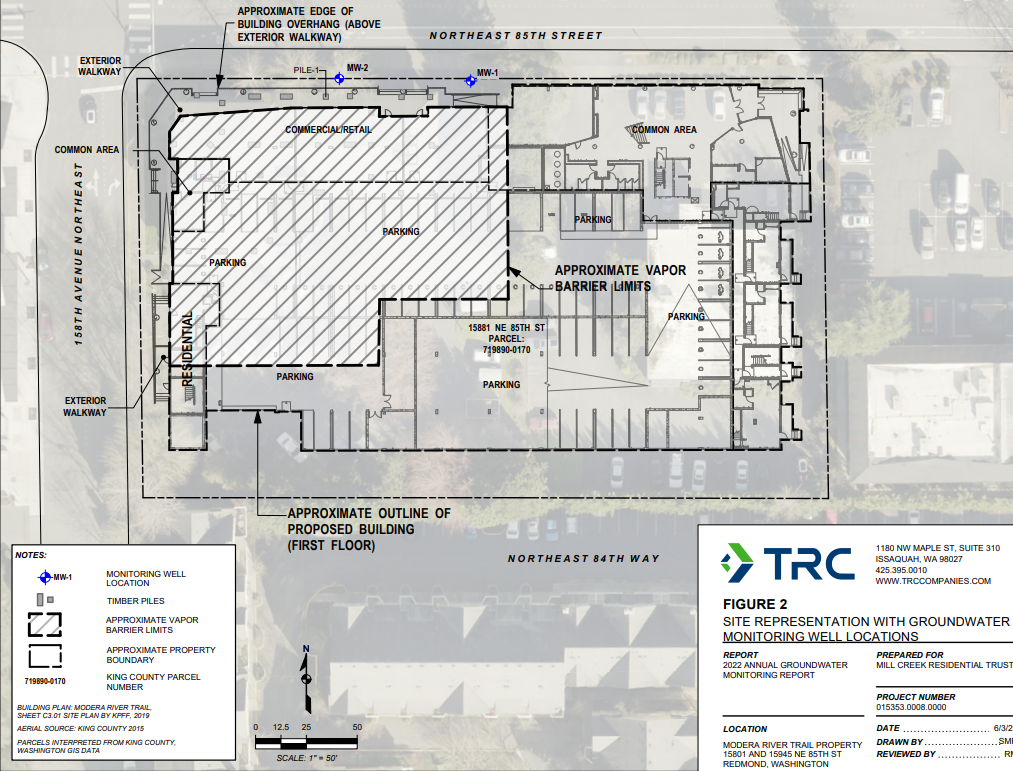

Groundwater monitoring wells were installed along the north boundary of the Site. Groundwater samples were collected from the monitoring wells and indicated that groundwater quality is not impacted by the soil contamination.

A vapor barrier is installed beneath the current building to mitigation potential risk that may be caused by hazardous vapor migrating to the building. Indoor air samples were also collected at two locations inside the first floor of the current building. The air sampling results indicated that the indoor air quality is not impacted by the contamination beneath the building.

The timber piles and soil contamination are located beneath a cap, consisting of the current building structure, a vapor barrier, and concrete floor. This cap prevents contamination to be exposed to human health and environment. Restrictions are in place to ensure the containment of contaminated soil is maintained. The restrictions are documented in an environmental covenant.

Contaminants Of Concern

Naphthalenes and carcinogenic polycyclic aromatic hydrocarbons (cPAHs) into the soil.

Model Toxics Control Act

The Model Toxics Control Act (MTCA) is Washington’s environmental cleanup law. It provides requirements for contaminated site cleanup and sets standards that protect human health and the environment. Ecology enacts the MTCA and oversees cleanups.

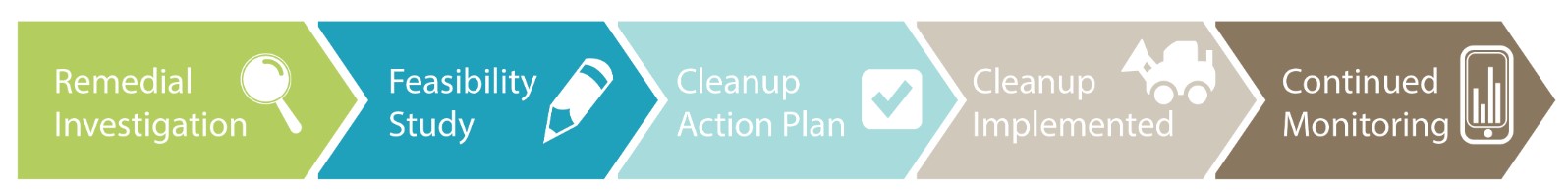

​The MTCA site cleanup process is completed in steps over a variable timeline.

Learn More How Ecology Is Protecting The Environment In Your Community

What's In My Neighborhood shows contamination cleanup sites in Washington state. Ecology works to clean up these sites to protect the health of people and the environment. Cleanups are construction projects that remove, treat, or contain potentially harmful substances.

Report An Environmental Issue

To report an environmental problem or concern, any time, day or night, use the online reporting form.

Counties: Island, King, Kitsap, San Juan, Skagit, Snohomish, and Whatcom
Email:
 nwroerts@ecy.wa.gov
Phone: 206-594-0000

Requesting Accommodation

Ecology is committed to providing people with disabilities access to information and services. To request an ADA accommodation, contact Ecology by phone at 360-407-6831 or email at ecyadacoordinator@ecy.wa.gov. For Washington Relay Service or TTY call 711 or 877-833-6341.  Visit Ecology’s website for more information.

​If you speak a non-English language, free language services are available.

Voluntary Cleanup Program

This site was cleaned up under our Voluntary Cleanup Program, which provides technical help to owners of contaminated sites.

Voluntary Cleanup Program customers pay fees to cover our costs for technical help and reviewing cleanup reports. Sites in this program must meet the same cleanup standards as the sites Ecology manages under legal orders.

Site use restrictions called institutional controls are in effect

Institutional controls can be fences, signs, or restrictions on how the property is used. For instance, an institutional control may prohibit installing drinking water wells or disturbing a protective cap that isolates contamination. These restrictions keep the contamination contained and keep people from being exposed to the contamination. The controls are usually listed in environmental covenants recorded with the county.

Periodic reviews are required when institutional controls are required at a site. Ecology conducts reviews to make sure the controls remain effective and the cleanup still protects human health and the environment. We conduct periodic reviews about every five years.

Environmental Covenant

County Recording #: 20230801000011
County Recording Date: 8/4/2023

Restrictions/Requirements

  • Control Stormwater
  • Control Vapor/Gas
  • Maintain/Protect Monitoring System
  • Ongoing Maintenance of Remedy
  • Prohibit New Building Construction
  • Prohibit Removal or Alteration of Existing Buildings
  • Prohibit Soil Disturbance
  • Restrict All Ground Water Extraction/Well Installation
  • Restrict Domestic Ground Water Extraction/Well Installation

Restricted Media

  • Air
  • Groundwater
  • Soil
Legal 1
Document Title Document Date Document Type
Modera River Trail - NW3292 Environmental Covenant 8/4/2023 Environmental Covenant; Alternative Mechanism
Technical Reports 11
Document Title Document Date Document Type
Modera River Trail—NW3292 Cleanup Action Summary Report 11/4/2022 Site Specific Technical Document - Other
Modera River Trail—NW3292 Indoor Air Monitoring Report August 2022 9/1/2022 Site Specific Technical Document - Other
Modera River Trail—NW3292 2022 Groundwater Monitoring Report 8/17/2022 Monitoring Report
Modera River Trail—NW3292 Indoor Air Monitoring Report 6/1/2022 Site Specific Technical Document - Other
Modera River Trail—NW3292 Well Installation and Monitoring Report 10/11/2021 Site Specific Technical Document - Other
Modera River Trail—NW3292 Response to Ecology Opinion 3/22/2021 Site Specific Technical Document - Other
Modera River Trail—NW3292 RI Checklist 10/5/2020 Site Specific Administrative Document - Other (Administrative Correspondence)
Modera River Trail—NW3292 FS Checklist 10/5/2020 Site Specific Administrative Document - Other (Administrative Correspondence)
Modera River Trail—NW3292 Remedial Investigation, Feasibility Study, and Remedial Action Report 8/12/2020 Site Specific Technical Document - Other
Modera River Trail - Phase I Environmental Site Assessment Report Vol. 1 9/25/2019 Site Specific Technical Document - Other
Modera River Trail - Phase I Environmental Site Assessment Report Vol. 2 9/25/2019 Site Specific Technical Document - Other
Voluntary Cleanup Program 3
Document Title Document Date Document Type
Modera River Trail - NW3292 NFA letter 9/28/2023 VCP Opinion on Site Cleanup – NFA
Modera River Trail—NW3292 FA Letter 1/29/2021 VCP Opinion on Site Cleanup – Other
Modera River Trail - NW3292 VCP Acceptance Letter & Application Forms 12/2/2020 VCP Administrative Document
There may be more documents related to this site. To obtain documents not available electronically, you will need to make a public records request.

Places to see print documents

  • Northwest Regional Office
    15700 Dayton Ave N
    Shoreline, 98133
    Please schedule an appointment to view print documents at this location.

Contaminants 1

Contaminant Type
Soil
Groundwater
Surface Water
Air
Sediment
Bedrock
Non-Halogenated Organics - Polycyclic Aromatic Hydrocarbons RB B
S
Suspected
C
Confirmed Above Cleanup Levels
B
Below Cleanup Levels
RA
Remediated-Above
RB
Remediated-Below
R
Remediated
This contaminant list was based on our best information at the time it was entered. It may not reflect current conditions at the site.
