Terminals 5 6 & 7 Uplands
Site Status
We finalized a legal agreement, Agreed Order (AO) DE 21560, with the Port of Port Angeles to implement the Remedial Investigation Work Plan (RIWP) Phase 1 at Terminals 5 6 & 7 Uplands. The port owns the properties and is the potentially liable person (PLP) responsible for conducting investigation.
The Phase 1 investigation was conducted in 2023 and 2024 and focused on determining whether contaminated soil or groundwater is moving from the study area into Port Angeles Harbor. We await sample results before determining next steps.
Site Description

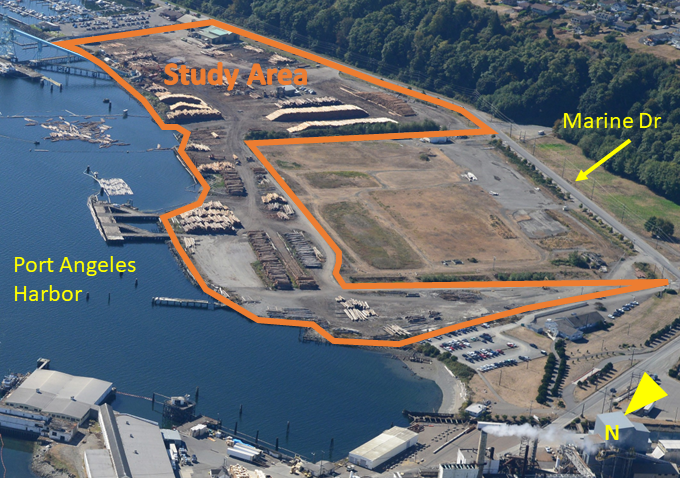

Study area versus site area: The area of a cleanup site is defined by where the contamination has come to be. The full extent of contamination at the Terminals 5 6 & 7 Uplands site is unknown. Until the full extent of contamination is known, the area of investigation is called the study area.
The Terminals 5 6 & 7 Uplands study area is generally located at 1313, 1417, and 1608 Marine Drive in Port Angeles and includes the shoreline bordering Port Angeles Harbor.
Terminals 5 and 6 total about 12 acres and Terminal 7 is about 23 acres in size. Terminals 5 and 6 are used as a log yard and storage area. Terminal 7 is used for log yard operations and a lay berth. A portion of Terminal 7 is leased for timber debarking operations and trailer storage.
The port is currently designing a system for collecting, moving, and treating stormwater for this area under a separate order with Ecology's Water Quality Program.
Due to the likely sensitivity to cultural resources in the area, we are working to limit the soil disturbance that might be involved in any cleanup investigation. We are working with the Lower Elwha Klallam Tribe on this issue.
Contaminants
The industrial property use in the past included mill operations, wood processing, and log storage. Based on environmental reports and information about these operations, hazardous chemicals contaminated soil and groundwater in the study area.
Pentachlorophenol (PCP) and tetrachlorophenol (TeCP) are wood preservatives that were used at the site. A hog fuel boiler burned salt-laden wood that may have contaminated the soil with dioxins and furans. There were large aboveground storage tanks of fuel oil and ammonia present on the properties.
The industrial history of the area suggests these contaminants may be be present at levels that require cleanup under the state's cleanup law, the Model Toxics Control Act (MTCA).
Contaminants in soil or groundwater:
- Petroleum hydrocarbons.
- Dioxins/furans.
- TeCP, PCP, and related compounds.
Remedial Investigation Work Plan - Phase 1
The work plan focuses on determining whether contaminated soil or groundwater is moving from the study area to the harbor. The investigation identifies if upland sources of contamination are an ongoing source of sediment contamination.
Groundwater: Installation and monitoring of wells installed along the shoreline provide information about whether contaminated groundwater is moving from the study area into the harbor.
Soil: Analyses of soil collected from the drilled borings used to install the monitoring wells indicate the presence and amount of contamination. The shoreline bank may have areas prone to erosion and/or seeping groundwater. Soil analyzed from erosional areas provide information about whether contaminated soil is moving into the harbor.
Topographic and visual surveys: Surveys determine the stability of the shoreline slope and the location of seeps and outfalls. This information is helpful to determine if these could be a source of contamination to the harbor. The surveys include examining rainwater movement on the pavement or surface soil.
Stormwater pipe: Condition of a stormwater pipe buried in the study area will be evaluated. If the pipe is in poor condition, then contaminated soil or groundwater could enter the pipe and be transported to the harbor.
Documents 22
Legal 8
Document Title | Document Date | Document Type |
Terminals 5, 6 & 7 Agreed Order Signed | 6/1/2023 | Agreed Order |
Terminals 5, 6, & 7 Uplands - Final PLP determination - Owens Corning | 5/19/2022 | Final Potentially Liable Person Status Letter |
Terminals 5, 6, & 7 Uplands - REVISED Final PLP determination - Merrill & Ring | 12/22/2021 | Final Potentially Liable Person Status Letter |
Terminals 5, 6, & 7 Uplands - Final PLP determination - Port of Port Angeles | 8/26/2021 | Final Potentially Liable Person Status Letter |
Terminals 5, 6, & 7 Uplands - Final PLP determination - Merrill & Ring | 8/26/2021 | Final Potentially Liable Person Status Letter |
Terminals 5, 6, & 7 Uplands - Combined ENL & Prelim PLP Status (Merrill & Ring) | 7/15/2021 | Early Notice Letter |
Terminals 5, 6, & 7 Uplands - Combined ENL & Prelim PLP Status (Owens Corning) | 7/15/2021 | Early Notice Letter |
Terminals 5, 6, & 7 Uplands - Combined ENL & Prelim PLP Status (Port of Port Angeles) | 7/15/2021 | Early Notice Letter |
Public Information 5
Document Title | Document Date | Document Type |
September 2024 Status Update: Port Angeles Formal Cleanup Sites & Natural Resource Damage Assessments | 9/30/2024 | Focus Sheet |
Terminals 5 6 & 7 Uplands Site Response to Comments | 8/8/2023 | Responsiveness Summary |
Terminals 5 6 & 7 Uplands Site Public Participation Plan | 5/15/2023 | Public Participation Plan |
Terminals 5 6 & 7 Uplands Fact Sheet AO, RIWP, & PPP | 5/12/2023 | Fact Sheet\Public Notices |
Port Angeles Habor Update Information Sheet March 2023 | 3/28/2023 | Focus Sheet |
Technical Reports 9
Places to see print documents
-
Southwest Regional Office300 Desmond Dr SELacey, 98503-1274Please schedule an appointment to view print documents at this location.
Contaminants 14
Contaminant Type | Soil |
Groundwater |
Surface Water |
Air |
Sediment |
Bedrock |
---|---|---|---|---|---|---|
Metals - Metals - Other | S | S | ||||
Halogenated Organics - Polychlorinated biPhenyls (PCB) | S | S | ||||
Non-Halogenated Organics - Phenolic Compounds | S | S | ||||
Non-Halogenated Organics - Non-Halogenated Solvents | S | S | ||||
Halogenated Organics - Dioxins/Furans | C | S | ||||
Non-Halogenated Organics - Polycyclic Aromatic Hydrocarbons | S | S | ||||
Metals - Arsenic | S | S | ||||
Metals - Lead | S | S | ||||
Metals - Mercury | C | S | ||||
Halogenated Organics - Other Halogenated Organics | C | C | ||||
Non-Halogenated Organics - Benzene | S | S | ||||
Non-Halogenated Organics - Petroleum-Diesel | C | C | ||||
Non-Halogenated Organics - Petroleum-Gasoline | S | S | ||||
Non-Halogenated Organics - Petroleum-Other | S | S |
- S
- Suspected
- C
- Confirmed Above Cleanup Levels
- B
- Below Cleanup Levels
- RA
- Remediated-Above
- RB
- Remediated-Below
- R
- Remediated
