Facility Site ID: 21539662
Cleanup Site ID: 16879

Status Update

Ecology issued a Site No Further Action (NFA) opinion letter on May 31, 2024.  The future development of this Site will be the Mount Vernon Library Commons Project.

Environmental Covenant

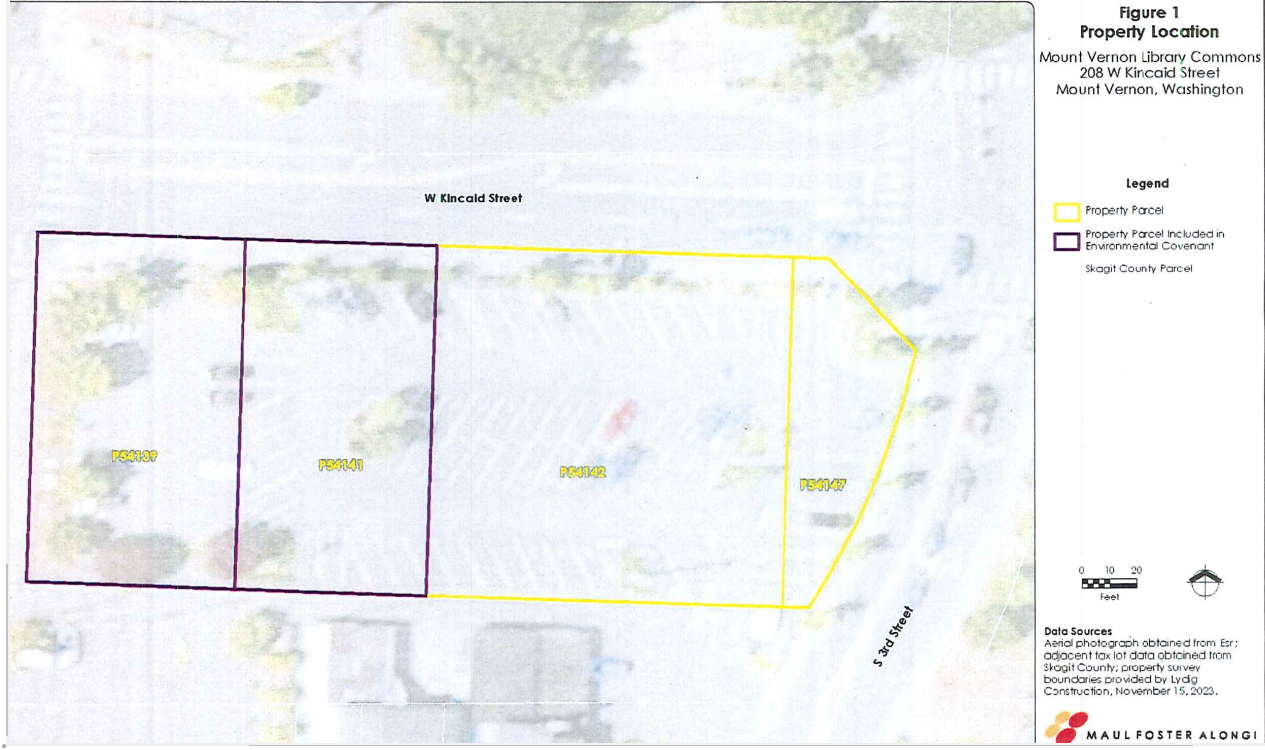

Environmental Covenant Site Map
Environmental Covenant Site Map
Contamination on the Property was successfully remediated to meet Ecology cleanup levels. An environmental Covenant was filed with Skagit County.

Site Background

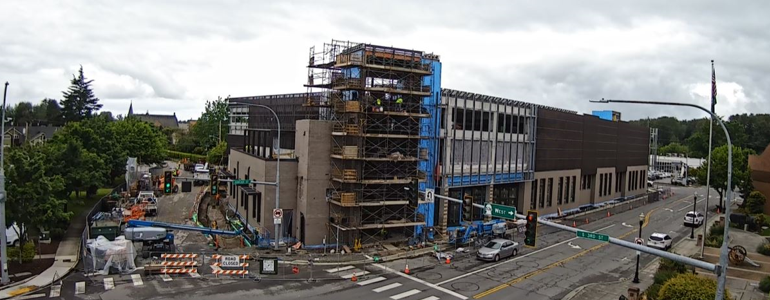

On-going image of the Mount Vernon Library Commons Project
On-going image of the Mount Vernon Library Commons Project

The Site, on 0.75-acre Skagit County parcel numbers P54139, P54141, P54142, and P54147, is located in section 19, township 34 north, and range 4 east of the Willamette Meridian.

The Property is owned by City of Mount Vernon, 910 Cleveland Avenue, Mount Vernon, WA,
and is located in the City of Mount Vernon Downtown neighborhood, in an area zoned as Public.

Prior to 1948 the Property was developed as a petroleum products service station and operated by Chevron.

Site Discovery

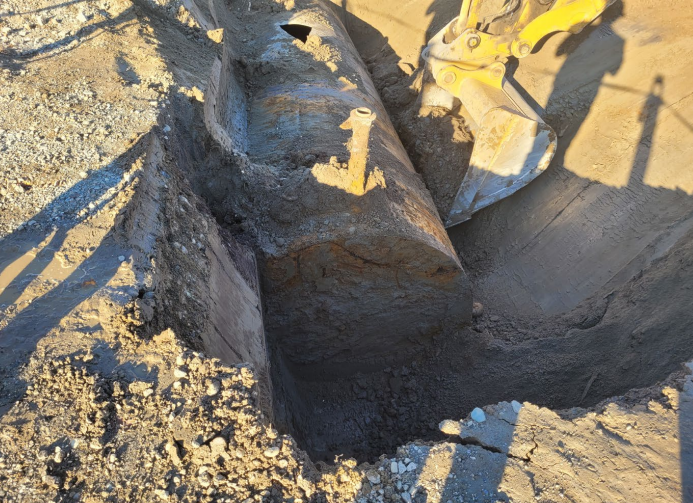

Discovery of an underground storage tank
Discovery of an underground storage tank
The current redevelopment of the Site into Mount Vernon Library Commons, transit center, and multi-use community space by the City of Mount Vernon led to the discovery and decommissioning of four undocumented underground storage tanks (USTs) the following capacities: 250-gallon, 440- gallon, 1, 200-gallon, and 3,200-gallon.

What Was Done To Clean Up The Site?

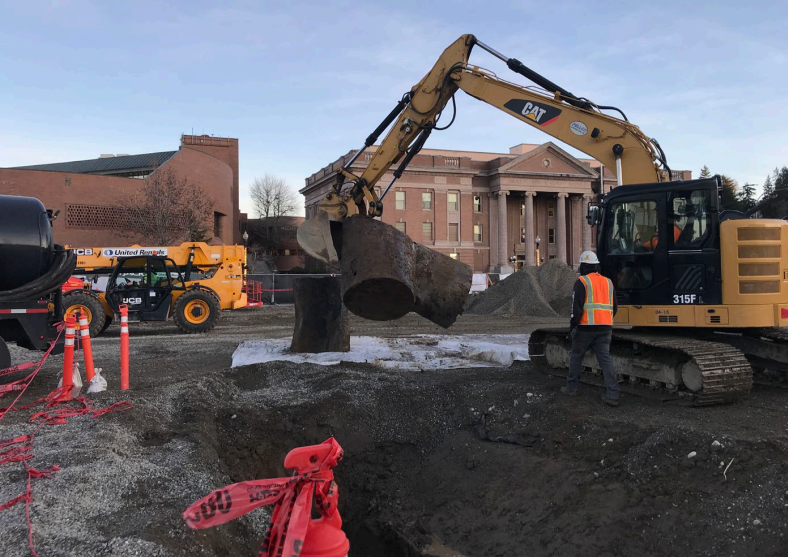

Earthwork contractor removing the inerted underground storage tanks on January 4 2023
Earthwork contractor removing the inerted underground storage tanks on January 4 2023
Environmental assessments were conducted following the discovery of the four underground storage tanks (USTs) at the Site between September 2022 and February 2023.

During the decommissioning of these four USTs, the surrounding soil was observed to be contaminated with TPH-D.
  • Approximately 900 cubic yards of petroleum-contaminated soil (PCS) were excavated.
  • Approximately 200 cubic yards of which were above state cleanup levels (Model Toxics Control Act Method A) and transported for off-Site disposal.
  • Three groundwater samples were collected from temporary monitoring wells installed in these borings and analyzed for petroleum hydrocarbons. Chemical concentrations from all three groundwater samples were below state cleanup levels (Model Toxics Control Act Method A) cleanup levels.

However, due to challenging soil conditions, including wet soil and unstable excavation sidewalls, deeper excavation in the vicinity of the decommissioned 1,200-gallon UST was not feasible. Consequently, an estimated 30 cubic yards of residual PCS containing a TPH-D concentration of 9,000 milligrams per kilogram (mg/kg), exceeding the Model Toxics Control Act (MTCA) 1,500 mg/kg generic TPH Method B direct contact cleanup level. The in-place residual PCS resulted in the enactment of the recorded environmental covenant.

Contaminants Of Concern

Diesel-range Total Petroleum Hydrocarbons (TPH-D) into soil.

Model Toxics Control Act

The Model Toxics Control Act (MTCA) is Washington’s environmental cleanup law. It provides requirements for contaminated site cleanup and sets standards that protect human health and the environment. Ecology enacts the MTCA and oversees cleanups.

Learn How Ecology Is Protecting The Environment In Your Community

What's In My Neighborhood shows contamination cleanup sites in Washington state. Ecology encourages cleanup of these sites to protect the health of people, plants, and animals. Cleanups are projects that remove, treat, or contain potentially harmful substances.

Report An Environmental Issue

To report an environmental problem or concern, any time, day or night, use the online reporting form.

Counties: Island, King, Kitsap, San Juan, Skagit, Snohomish, and Whatcom
Email:
 nwroerts@ecy.wa.gov
Phone: 206-594-0000

Requesting Accommodation

Ecology is committed to providing people with disabilities access to information and services. To request an ADA accommodation, contact Ecology by phone at 360-407-6831 or email at ecyadacoordinator@ecy.wa.gov. For Washington Relay Service or TTY call 711 or 877-833-6341.  Visit Ecology’s website for more information.

​If you speak a non-English language, free language services are available.

Voluntary Cleanup Program

This site was cleaned up under our Voluntary Cleanup Program, which provides technical help to owners of contaminated sites.

Voluntary Cleanup Program customers pay fees to cover our costs for technical help and reviewing cleanup reports. Sites in this program must meet the same cleanup standards as the sites Ecology manages under legal orders.

Site use restrictions called institutional controls are in effect

Institutional controls can be fences, signs, or restrictions on how the property is used. For instance, an institutional control may prohibit installing drinking water wells or disturbing a protective cap that isolates contamination. These restrictions keep the contamination contained and keep people from being exposed to the contamination. The controls are usually listed in environmental covenants recorded with the county.

Periodic reviews are required when institutional controls are required at a site. Ecology conducts reviews to make sure the controls remain effective and the cleanup still protects human health and the environment. We conduct periodic reviews about every five years.

Environmental Covenant

County Recording #: 202404240039
County Recording Date: 4/24/2024

Restrictions/Requirements

  • Control Stormwater
  • Ongoing Maintenance of Remedy
  • Prohibit Removal or Alteration of Existing Buildings
  • Prohibit Soil Disturbance
  • Restrict All Ground Water Extraction/Well Installation
  • Restrict Domestic Ground Water Extraction/Well Installation

Restricted Media

  • Groundwater
  • Soil
Legal 1
Document Title Document Date Document Type
Mount Vernon Library Commons - Environmental Covenant 4/24/2024 Environmental Covenant
Technical Reports 10
Document Title Document Date Document Type
Mount Vernon Library Commons - SHARP Report 1/15/2025 Site Hazard Assessment and Ranking Process Report
Mount Vernon Library Commons - TEE Form 5/9/2024 Terrestrial Ecological Evaluation
Mount Vernon Library Commons - Easement Documents-Map 12/21/2023 Site Specific Technical Document - Other
Mount Vernon Library Commons - Title Search Documents 12/12/2023 Site Specific Technical Document - Other
Mount Vernon Library Commons - Empirical Demonstration Memo 12/4/2023 Site Specific Technical Document - Other
Mount Vernon Library Commons - Site Assessment for Permanent Closure of a 440-Gallon UST 3/16/2023 Site Specific Technical Document - Other
Mount Vernon Library Commons - Site Assessment for Permanent Closure of a 1,200-Gallon UST 2/2/2023 Site Specific Technical Document - Other
Mount Vernon Library Commons - Site Assessment for Permanent Closure of Two USTs (3,200- and 250-gal) 12/8/2022 Site Specific Technical Document - Other
Mount Vernon Library Commons - Easement Documents 11/4/2022 Site Specific Technical Document - Other
Mount Vernon Library Commons - Phase I ESA Sanborn Maps 6/28/2018 Site Specific Technical Document - Other
Voluntary Cleanup Program 4
Document Title Document Date Document Type
Mount Vernon Library Commons - NW3382 NFA Letter 5/31/2024 VCP Opinion on Site Cleanup – NFA
Mount Vernon Library Commons - NW3382 Request for Opinion 11/17/2023 VCP Administrative Document
Mount Vernon Library Commons - VCP Technical Assistance 10/19/2023 VCP Technical Assistance
Mount Vernon Library Commons - NW3382 VCP Acceptance Letter 10/2/2023 VCP Administrative Document
There may be more documents related to this site. To obtain documents not available electronically, you will need to make a public records request.

Places to see print documents

  • Northwest Regional Office
    15700 Dayton Ave N
    Shoreline, 98133
    Please schedule an appointment to view print documents at this location.

Contaminants 5

Contaminant Type
Soil
Groundwater
Surface Water
Air
Sediment
Bedrock
Non-Halogenated Organics - Polycyclic Aromatic Hydrocarbons B B
Non-Halogenated Organics - Other Non-Halogenated Organics B B
Non-Halogenated Organics - Petroleum-Diesel RB B
Non-Halogenated Organics - Petroleum-Gasoline B B
Non-Halogenated Organics - Petroleum-Other B
S
Suspected
C
Confirmed Above Cleanup Levels
B
Below Cleanup Levels
RA
Remediated-Above
RB
Remediated-Below
R
Remediated
This contaminant list was based on our best information at the time it was entered. It may not reflect current conditions at the site.
