Facility Site ID: 84946863
Cleanup Site ID: 6762

Status

Current View
Current View

Ecology received Post-Remediation Compliance Monitoring report on October 30, 2024.  Based on a review of the remedial action documented in previous submitted reports, and the additional data provided in this report, Ecology determined that No Further Action is necessary to clean up contamination at the Site.  Ecology issued a No Further Action Letter on December 9, 2024.

Site Background

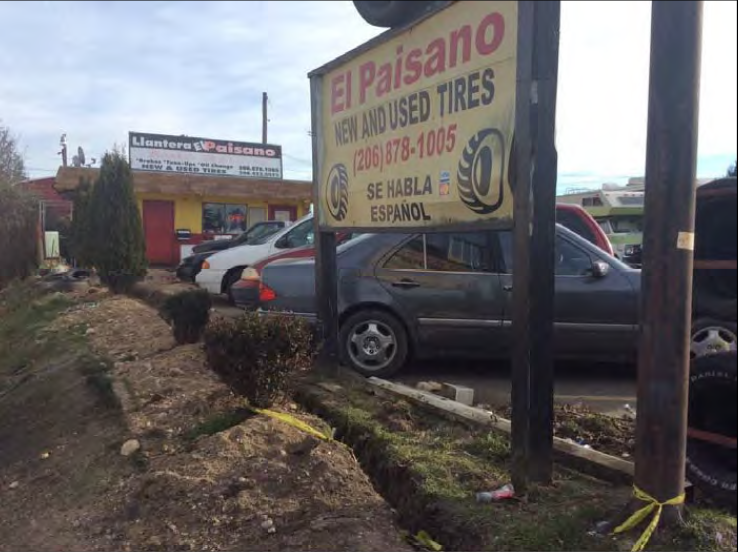

Property view before soil excavation
Property view before soil excavation

The majority of the Site footprint is located on one 0.64-acre King County parcel 2500600480 in Kent, Washington (Property). Based on data, the Site also includes the adjacent property to the north (King County Parcel 2500600465), and adjacent property to the southeast (King County parcel 2500600481).

A former bulk fuel distribution facility operated on the Property for approximately 75 years, most recently under the business name of Southgate Oil.  The facility stopped distributing fuel in or around 1999.  The facility included at least 11 underground storage tanks (USTs), multiple fuel dispensers, and an auto repair garage.  The USTs were installed between the 1950s and 1990s, and removed in 2000 and 2002.

Sound Transit acquired the Property and demolished all remaining building structures by 2020. The north portion of the Property has been developed with a new right-of-way, South 234th Street. The south portion is currently used as an equipment staging area for light rail facilities construction.

What Was Done To Cleanup The Site?

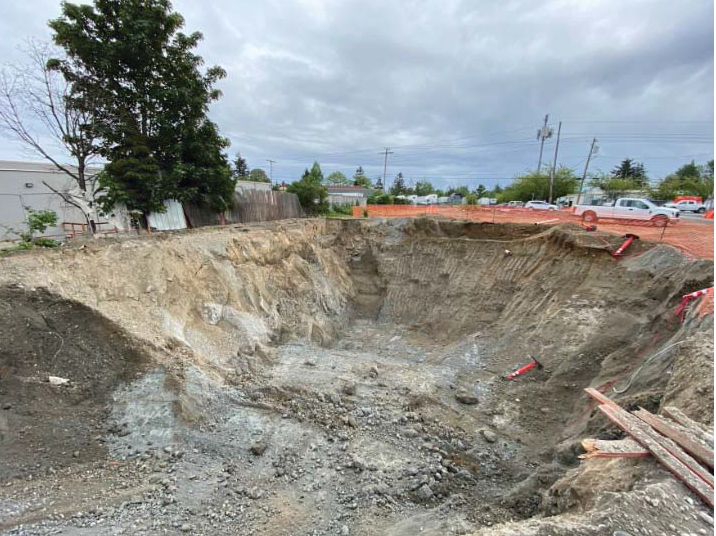

Soil Excavation
Soil Excavation

Environmental assessments and remedial actions were conducted at the Site since 2000.  In 2000 and 2002, 11 USTs and associated fuel dispensers were removed from the Property.  Petroleum contaminated soil were discovered in the UST excavations and under the dispensers.  Approximately 748 tons of contaminated soil were removed from the Property in 2002.

In 2017 to 2020, multiple environmental site assessment confirmed that petroleum contaminated soil were present throughout the Property to at least 21 feet deep. The deepest soil contamination is discovered on the central portion of the Property. The Petroleum contamination has migrated to soil beneath the north- and southeast-adjacent properties to approximately 15 feet deep.

In addition, shallow soil contaminated with chlorinated solvent, heavy metals, and polycylic aromatic hydrocarbons (cPAHs) were discovered near the former service garage on the northwestern portion of the Property.

In 2019 to 2020, soil excavations were completed throughout the Site (on all three properties) to remove contaminated soil. Soil excavations were completed to up to 20 feet deep on the western portion of the Property, 30 feet deep on the central portion of the Property, 12 feet deep on the eastern portion of the Property, and 15 feet deep on the adjacent properties to the north and southeast. A total of approximately 6,570 tons of contaminated soil has been removed from the Site. All known soil contamination has been sufficiently removed.

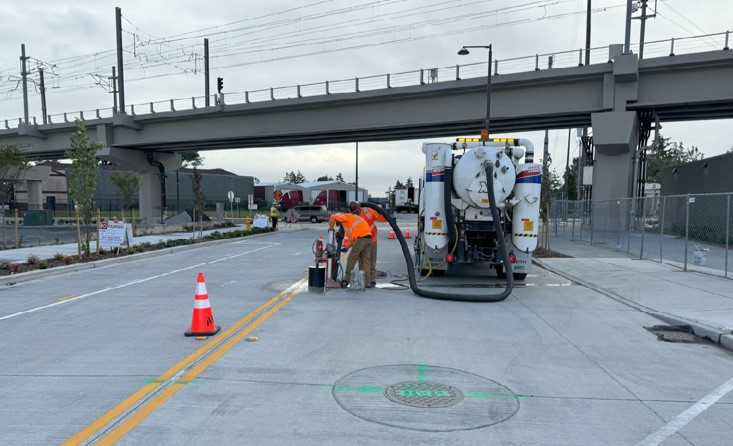

In 2024, a post-remediation groundwater exploration boring was advanced to 65 feet deep. No groundwater was observed in the boring. Because groundwater is at least 35 feet deeper than the deepest contaminated soil, the groundwater at the Site is not impacted by the contaminated soil.

Contaminants Of Concern

Total petroleum hydrocarbons as gasoline, diesel, and heavy oil (TPHg, TPHd, and TPHo); benzene, methylene chloride, tetrachloroethene (PCE), naphthalenes, carcinogenic polycyclic aromatic hydrocarbons (cPAHs), cadmium, lead, and mercury into the Soil

Voluntary Cleanup Program

This site was cleaned up under our Voluntary Cleanup Program, which provides technical help to owners of contaminated sites.

Voluntary Cleanup Program customers pay fees to cover our costs for technical help and reviewing cleanup reports. Sites in this program must meet the same cleanup standards as the sites Ecology manages under legal orders.

Legal 1
Document Title Document Date Document Type
Southgate Oil - NW0982 NFA Letter (Rescinded 6/9/06) 2/10/2003 NFA Opinion - Rescinded
Technical Reports 21
Document Title Document Date Document Type
Southgate Oil - NW3327 SHARP Report 11/20/2024 Site Hazard Assessment and Ranking Process Report
Southgate Oil - NW3327 Post-Remediation Compliance Monitoring 10/30/2024 Monitoring Report
Southgate Oil - NW3327 Revised VCP Application Cover Letter and Request for Opinion on Completed Cleanup 5/17/2022 Site Specific Technical Document - Other
Southgate Oil - NW3327 Response to Ecology Opinion Letter Dated June 23, 2021 12/10/2021 Site Specific Technical Document - Other
Southgate Oil - NW3327 VCP Application and Request for Opinion on Completed Cleanup 11/9/2021 Site Specific Technical Document - Other
Southgate Oil - NW3327 Terrestrial Ecological Evaluation 11/9/2021 Terrestrial Ecological Evaluation
Muscatel Midway - NW3309 Summary Report SSI and CAP 3/5/2021 Site Specific Technical Document - Other
Southgate Oil - Soil Characterization and Remediation Report Revised 1/26/21 1/26/2021 Site Specific Technical Document - Other
Muscatel Midway - NW3309 Letter: Correction to Cleanup Action Report 7/10/2020 Site Specific Technical Document - Other
Southgate Oil - Sound Transit Letter: Notice of MTCA Cleanup Action 5/15/2020 Site Specific Administrative Document - Other (Administrative Correspondence)
Muscatel Midway - NW3309 Cleanup Action Report June Doc Revision 12/31/2019 Site Specific Technical Document - Other
Muscatel Midway - NW3309 Cleanup Action Report Original 12/31/2019 Site Specific Technical Document - Other
Muscatel Midway - NW3309 Supplemental Subsurface Investigation Report 3/3/2019 Site Specific Technical Document - Other
Muscatel Midway - NW3309 Phase II ESA FL207 9/21/2018 Site Specific Technical Document - Other
Southgate Oil - NW3327 Phase II ESA FL209 9/21/2018 Site Specific Technical Document - Other
Southgate Oil - NW3327 Phase II ESA FL-210 FL-211 FL-212 FL-213 6/14/2018 Site Specific Technical Document - Other
Southgate Oil - Phase I ESA FL-207 (Muscatel) Part 1 3/1/2018 Site Specific Technical Document - Other
Southgate Oil - Phase I ESA FL207 (Muscatel) Part 2 3/1/2018 Site Specific Technical Document - Other
Southgate Oil - Phase I ESA FL-207 (Muscatel) Part 3 3/1/2018 Site Specific Technical Document - Other
Muscatel Midway - NW3309 Focused Subsurface Investigation Report 12/18/2017 Site Specific Technical Document - Other
Southgate Oil - NW3327 Phase I ESA FL-209 3/1/2017 Site Specific Technical Document - Other
Voluntary Cleanup Program 9
Document Title Document Date Document Type
Southgate Oil - NW3327 Site NFA 12/9/2024 VCP Opinion on Site Cleanup – NFA
Southgate Oil —NW3327 Opinion letter on Remedial Action 6/15/2022 VCP Opinion on Site Cleanup – Other
Muscatel Midway - NW3309 VCP Termination Letter 6/9/2022 VCP Administrative Document
Southgate Oil Sound Transit Parcels—NW3327 VCP Application Acceptance 3/9/2022 VCP Administrative Document
Muscatel Midway - NW3309 Opinion Letter 6/23/2021 VCP Opinion on Property Cleanup – Other
Muscatel Midway - NW3309 VCP Acceptance Letter 4/8/2021 VCP Administrative Document
Southgate Oil - NW0982 FA letter 6/9/2006 VCP Opinion on Site Cleanup – Other
Southgate Oil - NW0982 Determination Status Letter 6/9/2006 VCP Administrative Document
Southgate Oil - NW0982 Notification of Pending Inactive Determination Status 4/10/2006 VCP Administrative Document
There may be more documents related to this site. To obtain documents not available electronically, you will need to make a public records request.

Places to see print documents

  • Northwest Regional Office
    15700 Dayton Ave N
    Shoreline, 98133
    Please schedule an appointment to view print documents at this location.

Contaminants 9

Contaminant Type
Soil
Groundwater
Surface Water
Air
Sediment
Bedrock
Metals - Metals - Other RB
Non-Halogenated Organics - Polycyclic Aromatic Hydrocarbons RB
Halogenated Organics - Halogenated Solvents RB
Metals - Lead RB
Metals - Mercury RB
Non-Halogenated Organics - Benzene RB
Non-Halogenated Organics - Petroleum-Diesel RB
Non-Halogenated Organics - Petroleum-Gasoline RB
Non-Halogenated Organics - Petroleum-Other RB
S
Suspected
C
Confirmed Above Cleanup Levels
B
Below Cleanup Levels
RA
Remediated-Above
RB
Remediated-Below
R
Remediated
This contaminant list was based on our best information at the time it was entered. It may not reflect current conditions at the site.
