Facility Site ID: 97763114 Cleanup Site ID: 3018

  • Site Status

  • Cleanup Started

Current Status

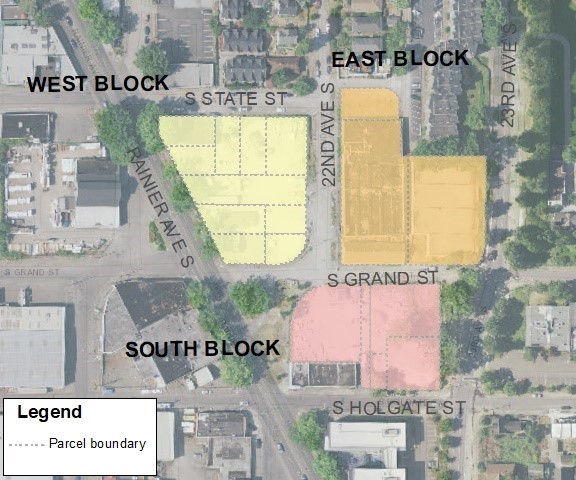

Aerial view of Grand Street Commons Cleanup Site
Aerial view of Grand Street Commons Cleanup Site

CURRENT STATUS

Updated July 2021



訊息中文版
 清理工作站信息

Información
en español

Información del Sitio

Thông tin bằng
tiếng Việt

 Thông Tin Địa Điểm



Cleanup actions for this site have begun. This cleanup is possible with assistance from Ecology’s affordable housing grant program.


Cleanup actions for this site include:

• Excavation and disposal of PCE -contaminated soil in the northwest portion of the West Block to an approximate depth of 30 feet bgs.

• Performing in situ treatment of chlorinated solvent -contaminated shallow groundwater using chemical reduction on the West Block and Rainier Ave S to achieve proposed cleanup levels.

• Excavation and disposal of petroleum hydrocarbon-contaminated soil on the East and West Blocks to an approximate depth of 15 feet below ground surface (bgs).

• Performing in situ treatment of petroleum hydrocarbon -, and 1,4 dioxane-contaminated shallow groundwater using chemical oxidation on East and West Blocks to achieve proposed cleanup levels.

• Capping of petroleum hydrocarbon-contaminated soil beneath a portion of 22nd Ave S.

• Capping of cadmium- and lead-contaminated soil at the South Block.

• Monitored natural attenuation of shallow groundwater until proposed cleanup levels are achieved.

• Implementation of institutional controls environmental covenant to restrict soil disturbance and/or prohibit groundwater use until proposed cleanup levels are achieved.


 The groundwater treatment injections began in June. Excavation is planned to begin in late summer 2021.

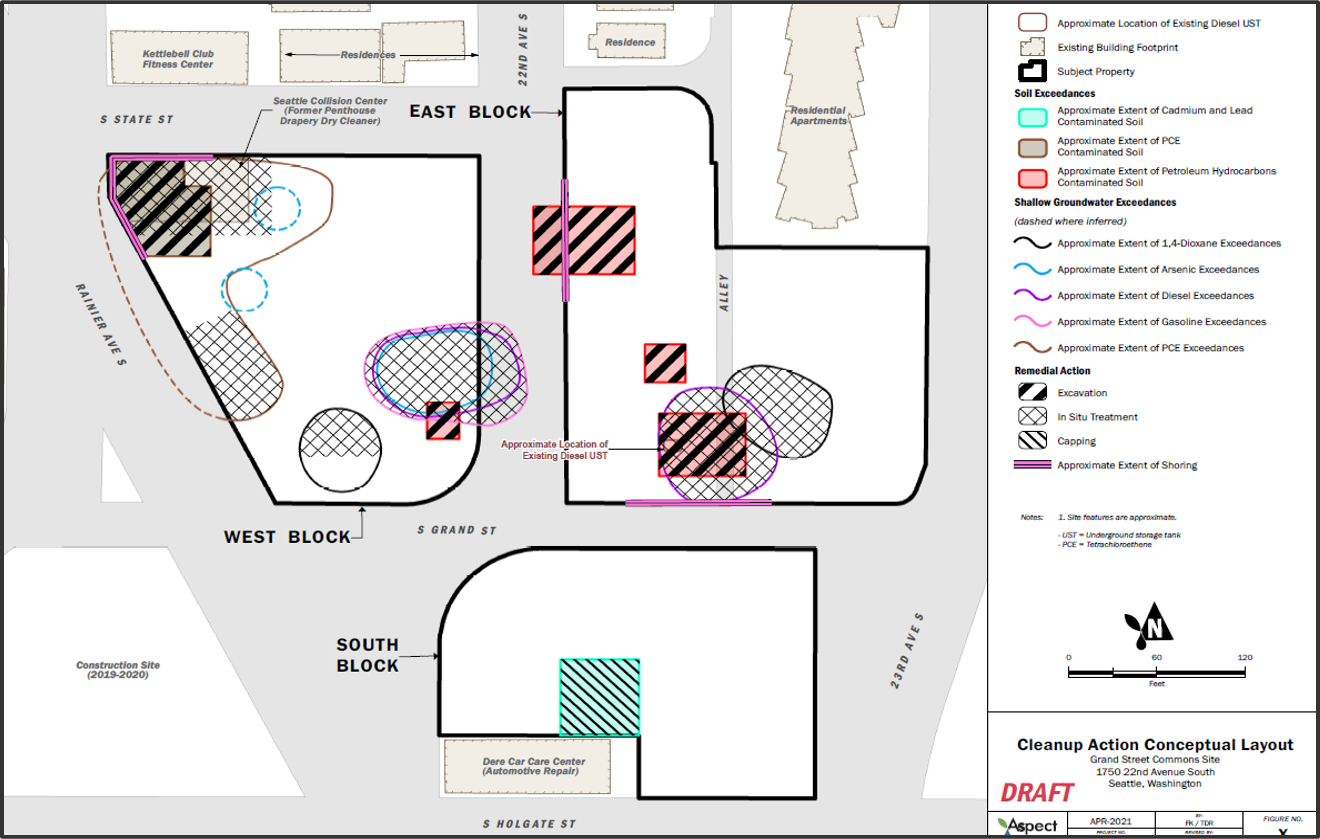

Conceptual layout of cleanup actions.  Graphic credit: Aspect Consulting 2021.
Conceptual layout of cleanup actions. Graphic credit: Aspect Consulting 2021.

Site Information

Grand Street Commons, LLC purchased this area to be redeveloped as a transit-oriented mix of affordable and market rate housing near the planned Judkins Park Link Light Rail Station. The development will include approximately 314 units of affordable housing as well as 420 market rate apartments. The redevelopment will include some retail space and underground parking.

Site Location

The Grand Street Commons Site is located in the Judkins Park neighborhood of Seattle.  The Site consists of 17 King County parcels totaling about 3.3 acres, divided into three areas: the West Block, the East Block, and the South Block (see above figure).

Site History

The Site has been used for manufacturing, commercial dry cleaning and vehicle repair and painting. Over the last several decades, businesses operating there released hazardous substances into soil and groundwater.

Belshaw Brothers, Inc. (BBI) operated a commercial facility that produced bakery and restaurant equipment from 1924-2000’s. The facility included a paint building, welding shop, an on-site foundry used for aluminum parts casting, warehouses, production buildings, and an unpaved parking lot. At least three underground storage tanks (USTs) released petroleum products to the soil that migrated to and impacted shallow groundwater at the Site.

The parcel in the northwest corner of West Block was occupied by multiple commercial and light industrial facilities from the early 1950s to the present. Penthouse Drapery Cleaners (Penthouse) occupied this parcel for a commercial dry cleaning operation from the 1980’s through the mid-1990’s. From 1998-2020 Seattle Collision Center, which operated a vehicle repair and painting business, occupied the former Penthouse property. In 2018 Penthouse performed an independent cleanup through Ecology’s Voluntary Cleanup Program (project #NW2278) by conducting an interim action.  Electrical Resistance Heating (ERH) was used to remove some of the chlorinated solvents from soil and groundwater on the West Block.

Contamination

Operations from the former drycleaner and former manufacturing led to contaminated soil and groundwater in many areas of the Site. Some contaminants also released vapors into the air. During the remedial investigation, the following contaminants of concern (COCs) were identified for soil and shallow groundwater at the Site above the state Cleanup levels:

• Soil: Total Petroleum hydrocarbons (TPH) in the gasoline range (TPH-G), diesel-range hydrocarbons (TPH-D), cadmium, lead, and trichloroethene (PCE)

• Groundwater: PCE, trichloroethene (TCE), vinyl chloride (VC), 1,4-dioxane, gasoline range (TPH-G), diesel-range hydrocarbons (TPH-D), benzene, xylenes, and arsenic

These contaminants were found at levels that exceed allowable standards under the state’s cleanup law, the Model Toxics Control Act (MTCA Chapter 70.015D RCW), and therefore must be addressed during the cleanup action. Cis-1,2-dichloroethene was also found in the groundwater but at concentrations below applicable cleanup levels under MTCA.

General Cleanup Process

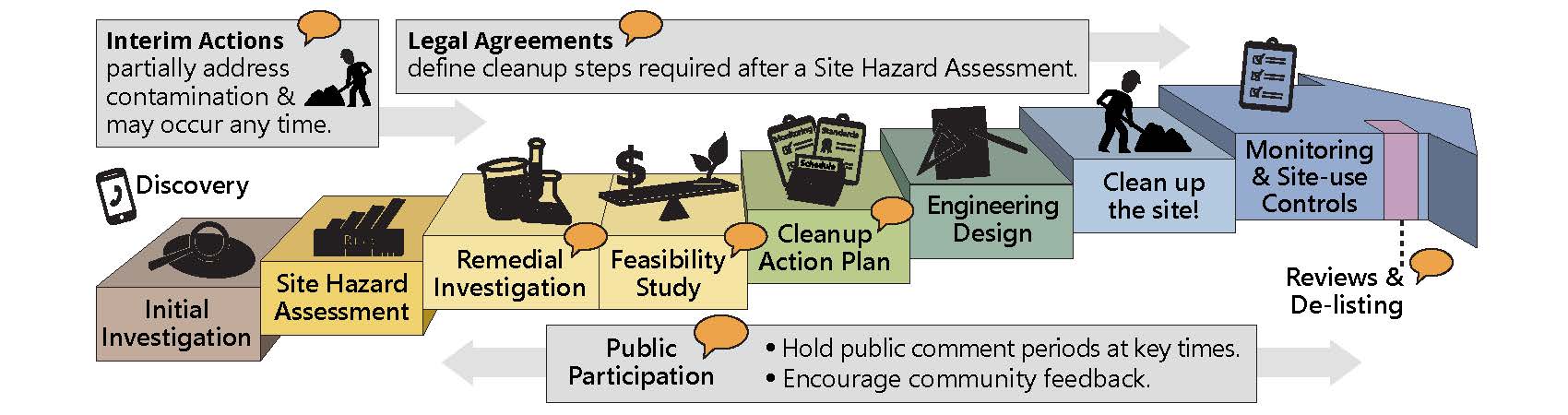

The Model Toxics Control Act (MTCA; Chapter 70.105D RCW is Washington’s environmental cleanup law). It provides requirements for contaminated site cleanup and sets standards that protect human health and the environment. Ecology enacts the MTCA and oversees cleanups. The MTCA site cleanup process is completed in steps (see graphic below) over a variable timeline.
Legal 4
Document Title Document Date Document Type
Second Amendment, GSC PPCD-Draft 4/1/2021 Consent Decree - Amendment
First Amendment MBHA PPCD-Draft 4/1/2021 Consent Decree - Amendment
MBHA Prospective Purchaser Consent Decree - Signed 9/13/2018 Consent Decree
GSC Prospective Purchaser Consent Decree - Signed 9/6/2018 Consent Decree
Public Information 9
Document Title Document Date Document Type
Grand Street Commons factsheet PPCD Amendment 2021 訊息中文版 4/8/2021 Fact Sheet\Public Notices
Grand Street Commons factsheet PPCD Amendment 2021 4/8/2021 Fact Sheet\Public Notices
Grand Street Commons factsheet PPCD Amendment 2021 訊息中文版 4/8/2021 Fact Sheet\Public Notices
Grand Street Commons factsheet PPCD Amendment 2021 Tiếng Việt 4/8/2021 Fact Sheet\Public Notices
Grand Street Commons factsheet PPCD Amendment 2021 español 4/8/2021 Fact Sheet\Public Notices
Grand Street Commons Public Participation Plan 4/19/2018 Public Participation Plan
Làm Sạch Và Tái Xây Dựng Grand Street Commons 4/12/2018 Fact Sheet\Public Notices
Grand 街公域清理整治工作和建造公寓 4/12/2018 Fact Sheet\Public Notices
Grand Street Commons Cleanup and Redevelopment 4/12/2018 Fact Sheet\Public Notices
State Environmental Policy Act 1
Document Title Document Date Document Type
Ecology DNS 2/19/2021 SEPA Documents
Technical Reports 14
Document Title Document Date Document Type
Engineering Design Report Appendices Grand Street Commons Site 11/23/2021 Engineering Design Report
Grand Street Commons - Monthly Progress Report #11 - May 2019 5/11/2019 Progress Report
Grand Street Commons - Monthly Progress Report #11 - May 2019 5/11/2019 Progress Report
Grand Street Commons - Monthly Progress Report #10 - April 2019 4/10/2019 Progress Report
Grand Street Commons - Monthly Progress Report #9 - March 2019 3/29/2019 Progress Report
Grand Street Commons - Progress Report #8 - February 2019 3/8/2019 Progress Report
Grand Street Commons - Progress Report #7 - January 2019 2/8/2019 Progress Report
Grand Street Commons - Remedial Investigation Work Plan 1/30/2019 Remedial Investigation Work Plan
Grand Street Commons - Progress Report #6 - December 2018 1/10/2019 Progress Report
Grand Street Commons - Progress Report #5 - November 2018 12/10/2018 Progress Report
Grand Street Commons - Progress Report #4 - October 2018 10/1/2018 Progress Report
Belshaw Brothers Inc. - Rank Notification Letter 7/1/2015 Site Specific Administrative Document - other (Administrative correspondence)
Belshaw Brothers Inc - Site Hazard Assessment 4/2/2015 Site Hazard Assessment Report
Belshaw Brothers Inc - SHA Notification Letter 9/26/2014 Site Specific Administrative Document - other (Administrative correspondence)
There may be more documents related to this site. To obtain documents not available electronically, you will need to make a public records request.

Places to see print documents

  • Northwest Regional Office
    15700 Dayton Ave N
    Shoreline, 98133
    Please schedule an appointment to view print documents at this location.

Contaminants 5

Contaminant Type
Soil
Groundwater
Surface Water
Air
Sediment
Bedrock
Halogenated Organics - Halogenated Organics C C
Non-Halogenated Organics - Petroleum Products-Unspecified C C
Non-Halogenated Organics - Non-Halogenated Solvents C C
Non-Halogenated Organics - Polycyclic Aromatic Hydrocarbons C C
Non-Halogenated Organics - Methyl tertiary-butyl ether S S
S
Suspected
C
Confirmed Above Cleanup Levels
B
Below Cleanup Levels
RA
Remediated-Above
RB
Remediated-Below
R
Remediated
This contaminant list was based on our best information at the time it was entered. It may not reflect current conditions at the site.
